Cargo Area Trim for Safari

This page is currently a work-in-progress, as of 12/30/22.  Updated 1955 Folding Seat Trim 1/16/23.

By Larry Gorden, January 2023.  The following links display each area of the Safari Cargo Area Trim.  Each link opens in a new tab or window.

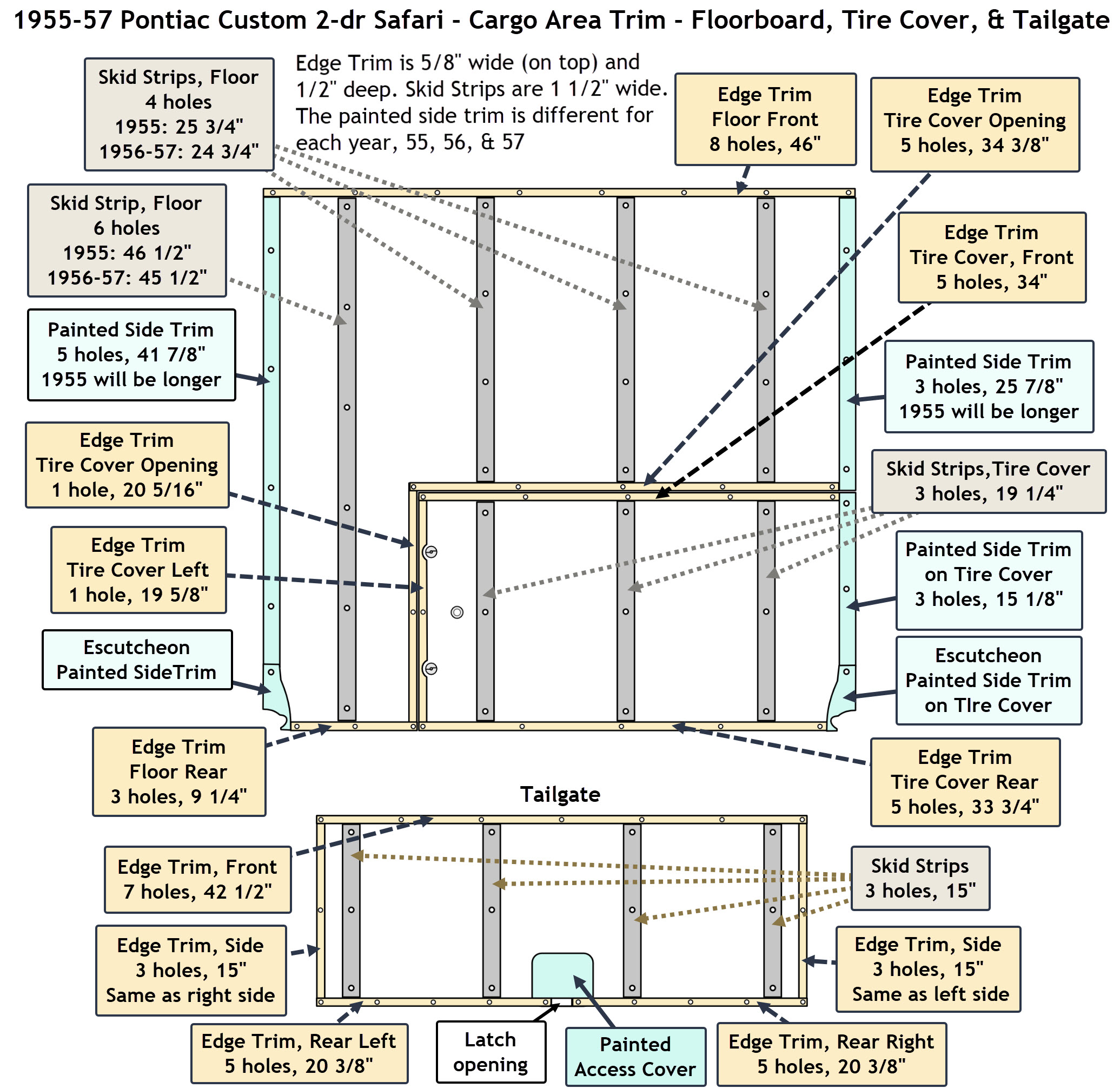

55-57 Floorboard+Tailgate.jpg (314877 bytes) Floorboard, Tire Cover, and Tailgate.  Covers 1955-57 trim.

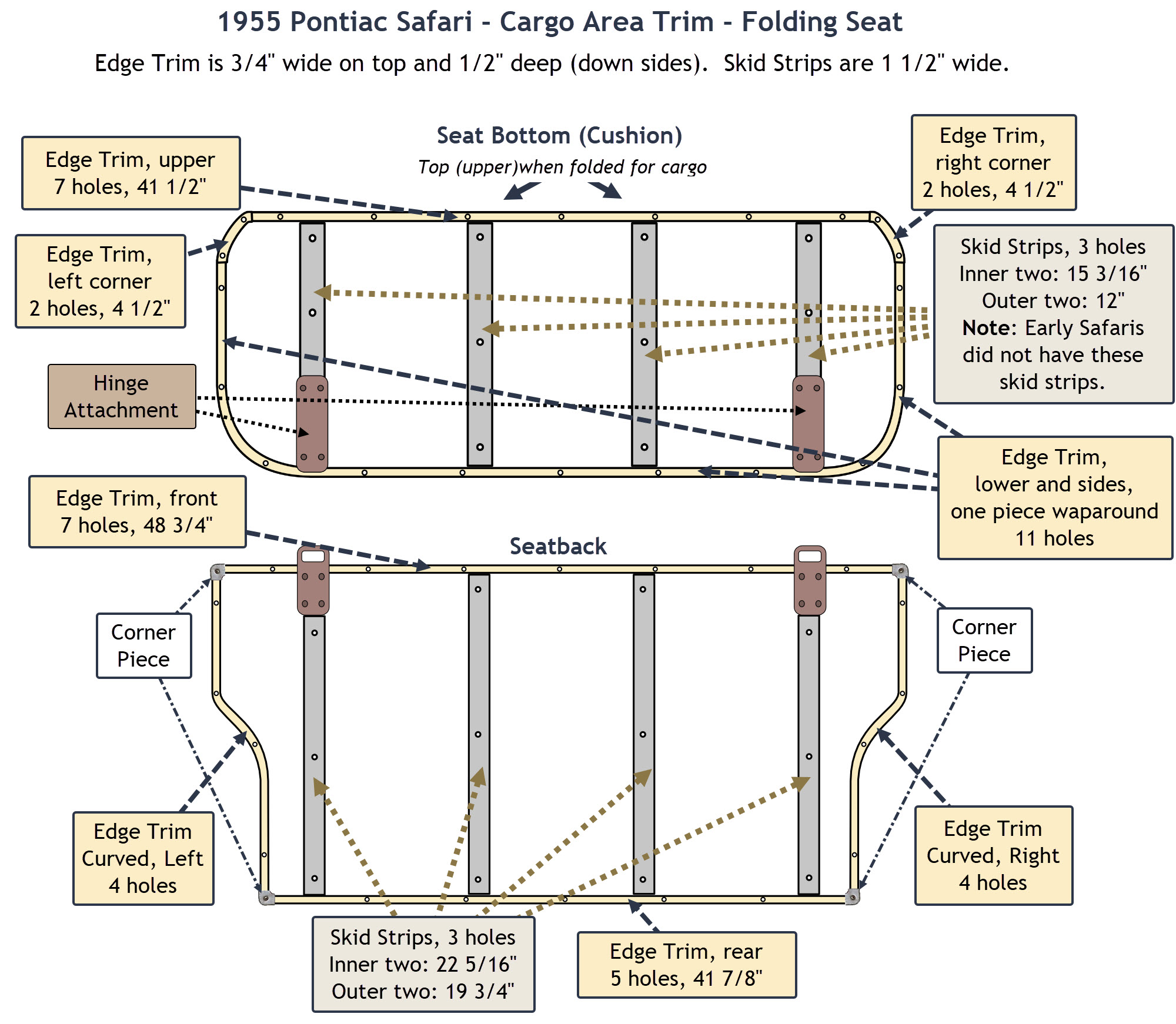

55 Folding Seat.jpg (530768 bytes) 1955 Folding Seat Trim

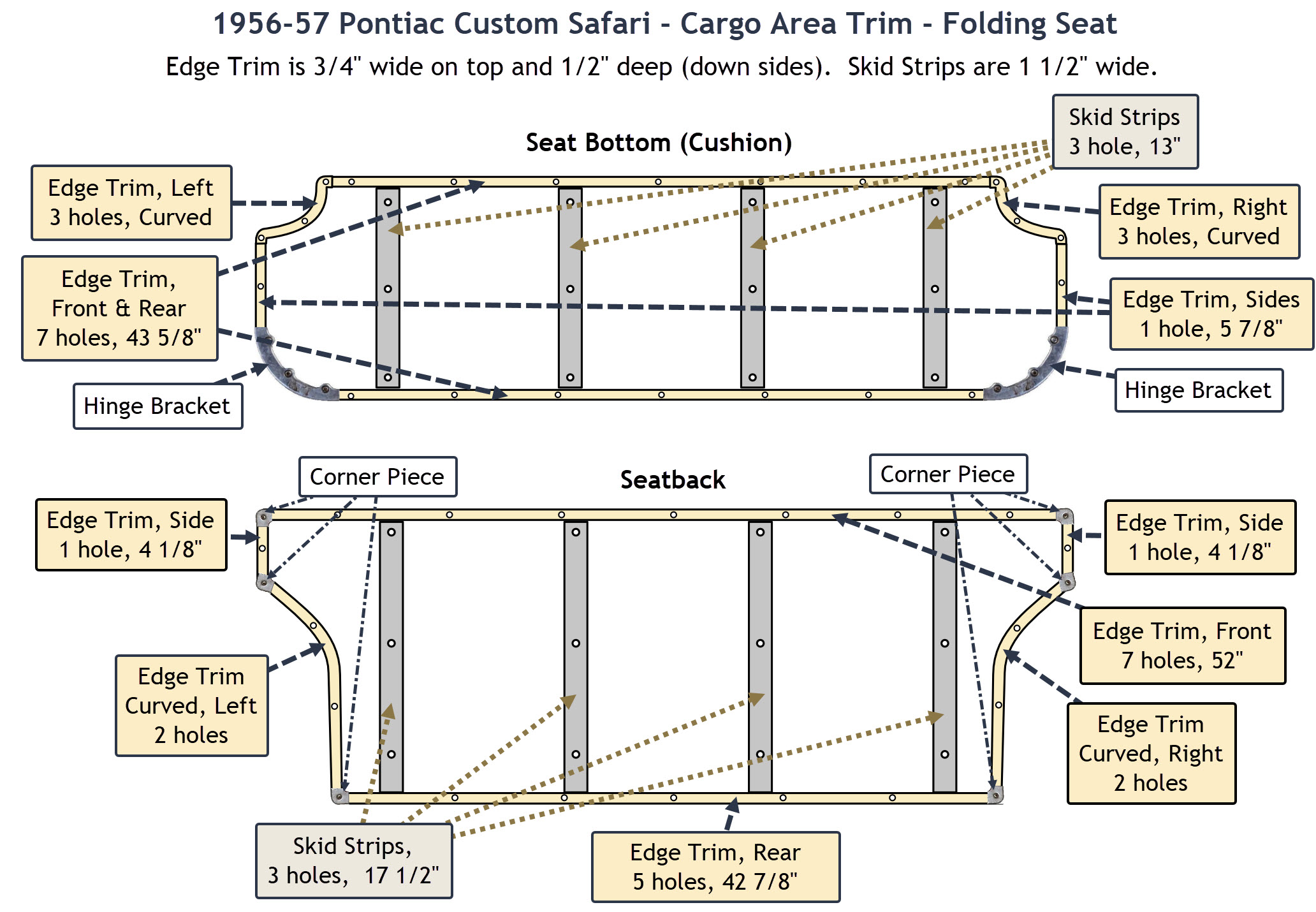

56-57 Folding Seat.jpg (491673 bytes) 1956-57 Folding Seat Trim

These trim illustrations with measurements are an expansion to the trim diagram and measurements prevously published by Michael Munger (link) on the "Custom Safari Chapter" web site (link) and in published newsletters.  His meaurements were from a 1957 Safari.  I am measuring trim on my 1956 Safari to confirm measurements. All trim is the same for '56 and '57 except the floorboard painted side trim (as confirmed by the Master Parts Catalog).

The 1955 folding seat measurements come from Luke Miller (thanks!) on the Custom Safari Chapter web site (link). Early '55 Safaris were produced without skid strips on folding seat bottom.
